Big Iron Flow Control Products | SKU:
GENNG300P-SE
300 kW Natural Gas Generator Prime (480V/3/60Hz)
$171,540.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Lead Time: 2-3 Weeks
300 kW Natural Gas Generator Prime (480V/3/60Hz) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
300 kW Natural Gas Generator Prime (480V/3/60Hz)
c/w
LEAD TIME: 2 Weeks
| General Specs | |
| Model | GENNG300P-SE |
| Engine Brand | Cummins |
| Alternator Brand | Stamford |
| Control Panel Brand | SmartGen |
| Open Type Dimensions (mm) | 3800×1600×2200 mm (L*W*H) |
| Open Type Net Weight (kg) | 3700 kg |

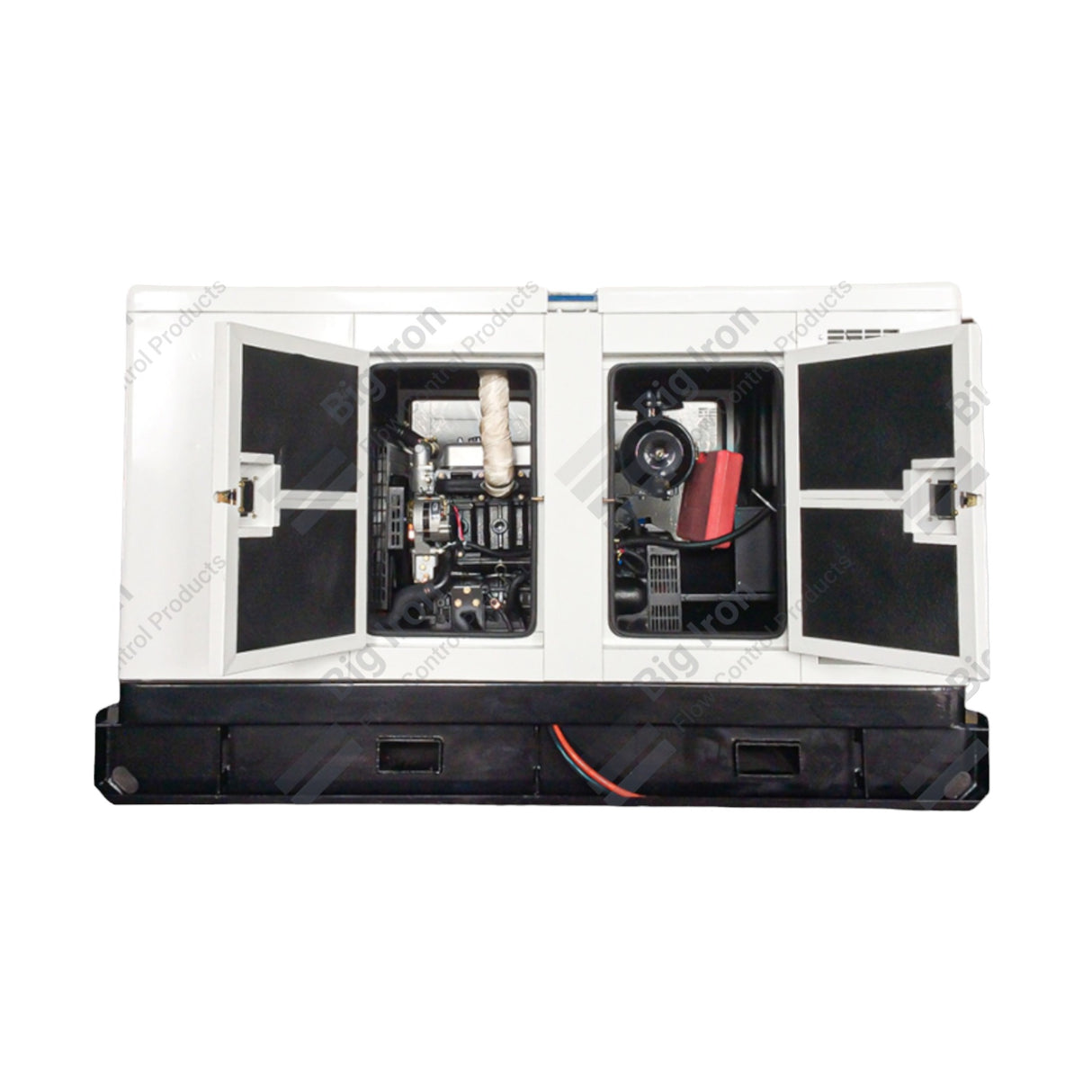

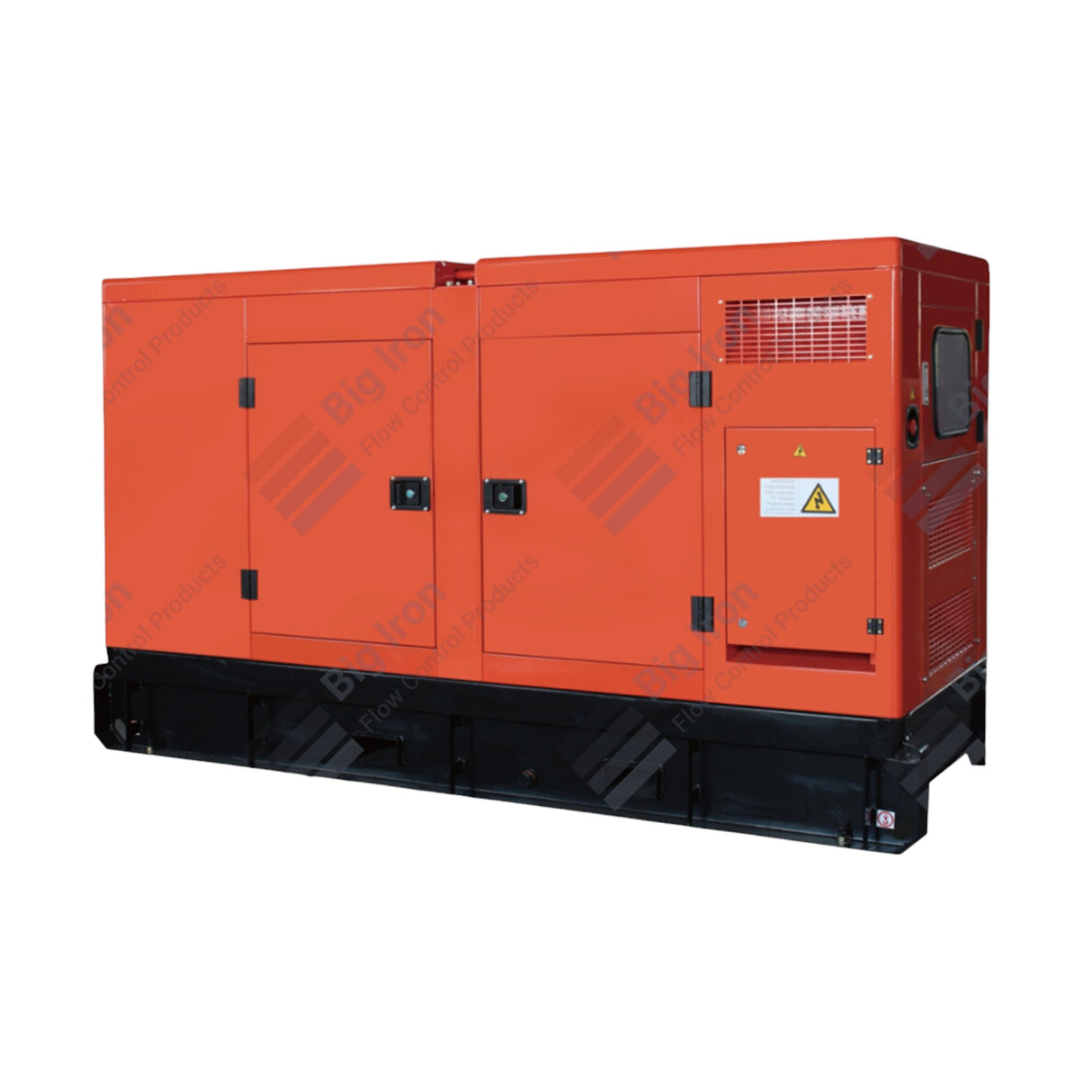

| Silent Type Dimensions (mm) Silent Containerized Enclosure Dimensions |
6096×2438×2621 mm (L*W*H) |
| Silent Type Net Weight (kg) | kg |
| Standard Configuration (including but not limited to): High Performing Circuit Breaker, Aluminum 50° | |
| Output | |
| Fuel | PNG |
| Rated Power | 300 kW |
| Rated voltage (V) | 480/277V |
| Phase | 3 phase 4 wires |
| Engine/Alternator RPM (rpm) | 1800 |
| Power factor | 0.8 |
| Frequency (Hz) | 60Hz |
| Engine | |
| Engine Manufacturer | Cummins |
| Engine Model | |
| Ignition System | High-Energy, Multi-Cylinder Ignition System |
| Speed | 1800rpm |
| Number of Cylinders | 6 cylinders |
| Cylinder Arrangement | Inline |
| Aspiration Type | Intercooler Supercharged |
| Cooling Method | Liquid-Cooled |
| Compression Ratio | 11:01 |
| Bore x Stroke (mm x mm) | 159mm x 159mm |
| Displacement | 37.7 L |
| Natural Gas Consumption Rate | 225 g/kW.h |
| Oil Consumption Rate | Less than 0.24L/h |
| Lubricant Grade | 20W50-C14 |
| Alternator | |
| Alternator Manufacturer | Stamford |
| Excitation Method | Brushless, Self-excited |
| Power | 300kW |
| Phase | 3 phase 4 wires |
| Connection Method | SAE Standard |
| Insulation Grade | H |
| Voltage Adjust Range | ≥5% |
| Exhaust System | |
| Exhaust temperature (℃) | ≥ 550℃ |
| Maximum allowable exhaust back pressure | 10 kPa |
| Exhaust temperature - after vortex | 580±25℃ |
| Air Intake System (Maximum intake air resistance) | |
| Dirty Air Filter Element | 6.2 mmH20 |
| Standard Clean Air Filter Element | 3.7 mmH20 |
| Heavy Duty Clean Air Filter Element | 53 mmH20 |
| Cooling System | |
| Exhaust Pipe | Water Jacket cooling system |
| Supercharger | Liquid Cooled Supercharger |
| Total Coolant Capacity | 160 L |
| Thermostat Temperature Adjustment Range | 76℃ - 82℃ |
| Maximum outlet water temperature (standby rated) | 104℃ - 110℃ |
| Minimum Intake / Exhaust Area (m2) | 5.5m2 |
| Lubrication System | |
| Oil Pressure Alarm value (kPa) | 69-345kPa |
| Maximum allowable oil temperature | 127℃ |
| Lubricant capacity | 80 L |
| Lubricant Grade | 20W50-C14 |
| Ignition System | |
| Ignition System | High-Energy, Multi-Cylinder Ignition System |
| Ignition Firing Order | 1R-6L-5R-2L-3R-4L-6R- 1L-2R-5L-4R-3L |
| Electrical System | |
| Starter Motor | DC24V, Heavy-duty, Positive Gearing |
| Battery Charging System | Negative Ground, 40A |
| Minimum Battery Starting Capacity (Ah) | 4×165Ah |
| Consumption Rate | |
| Natural Gas Consumption Rate @ 100% Load LCV (low calorific value) is 35.22 MJ/m³ |
225 g/KW.h |
| Oil Consumption Rate | Less than 0.24 L/h |
| Intake Pipe (interface size) | DN50mm |

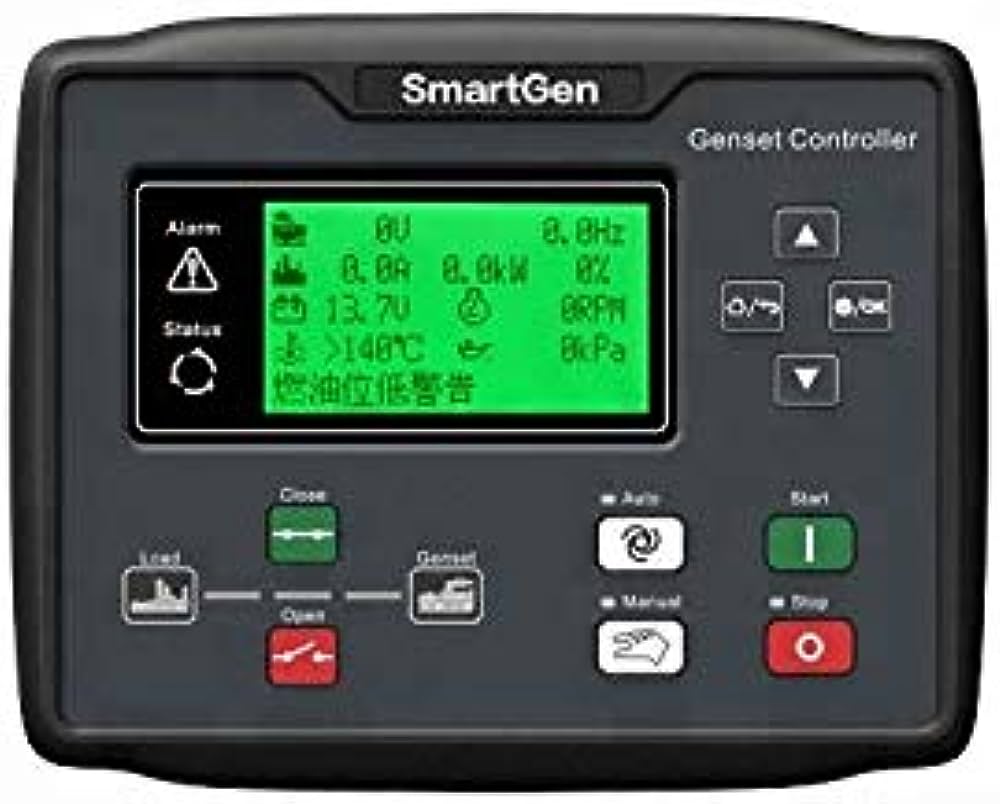

| Control Panel | |
| Brand | SmartGen |
| Display | LCD |
| Display Parameters The control module gives digital readouts of the following, but not limited to: |
● Generator voltage ● Output frequency ● Engine speed ● Battery voltage ● Engine hours run ● Charger voltage ● Oil pressure ● Temperature ● Fault information |
| The control module has indicators for failure information: | ● Overspeed/underspeed ● Over/under voltage ● Emergency stop ● Low oil pressure ● High water temperature ● Failure to start ● Battery charger failure |
| Automatic shutdown occurs under: | ● Low engine oil pressure ● High engine water temperature ● Overspeed/underspeed ● Failure to start after three attempts |
